SLOTTED HEAD SCREW DRIVERS
ENGINEER'S PATTERN - INDUCTION HARDENED

GENERALLY CONFORMING TO IS : 844 :1979 (PART II)

Cellulose Acetate is a natural polymer manufactured out of natural cellulose. The material has many good properties such as high transparency and aesthetic appeal, high impact and mechanical strength, high dielectric constant, excellent machinability, good resistance to a variety of chemicals and compability with human skin. The blades are made out of spring steel and thereafter go through number of operations and finally nickel-chrome plated for protection against rust. Blade tips are hardened and tempered confirm to appropriate Rockwell Hardness numbers as per ISI specifications. Every single piece is througly inspected before it leaves our premises.





Click to Enlarge View

Product No. Blade Size
Dia x Length
Tip Dimension

Pcs. in Box

Pcs. in cartoon
VAR-251 2.5 X 50 2.5 X 0.4 20 2000
VAR-252 2.5 X 50 1.6 X 0.4 20 2000
VAR-253 2.5 X 75 1.6 X 0.4 20 2000
VAR-254 2.5 X 100 2.5 X 0.4 20 2000
VAR-352 3.0 X 65 3.25 X 0.5 20 2000
VAR-353 3.25 X 75 3.25 X 0.5 20 2000
VAR-453 4.5 X 75 4.5 X 0.6 20 1000
VAR-604 6.0 X 100 6.0 X 0.9 20 500
VAR-606 6.0 X 150 6.0 X 0.9 20 500
VAR-608 6.0 X 200 6.0 X 0.9 20 400
VAR-610 6.0 X 250 6.0 X 0.9 20 400
VAR-612 6.0 X 300 6.0 X 0.9 20 300
VAR-806 8.0 X 150 8.0 X 1.2 10 200
VAR-808 8.0 X 200 8.0 X 1.2 10 200
VAR-810 8.0 X 250 8.0 X 1.2 10 200
VAR-812 8.0 X 300 8.0 X 1.2 10 200
VAR-1008 10.0 X 200 10.0 X 1.5 6 60
VAR-1010 10.0 X 250 10.0 X 1.5 6 60
VAR-1012 10.0 X 300 10.0 X 1.5 6 60
VAR-1014 10.0 X 350 10.0 X 1.5 6 60
VAR-1016 10.0 X 400 10.0 X 1.5 6 60
VAR-1018 10.0 X 450 10.0 X 1.5 6 60

SLOTTED HEAD SCREW DRIVERS - INSULATED
ELECTRICAL' S PATTERN INDUCTION HARDENED

Yellow colored sleeves on blades are made out of polyvinyl chloride (PVC) so as to provide protection against electric shocks. Handles and blades are manufactured as mentioned earlier.



Click to Enlarge View

Product No. Blade Size Dia x Length
Tip Dimension

Pcs. in Box

Pcs. in cartoon
VAR-353SL 3.25 X 75 3.25 X 0.5 20 2000
VAR-354 3.25 X 100 3.25 X 0.5 20 2000
VAR-356 3.25 X 150 3.25 X 0.5 20 1500
VAR-454 4.5 X 100 4.5 X 0.6 20 1000
VAR-456 4.5 X 150 4.5 X 0.6 20 800
VAR-504 5.0 X 100 5.0 X 0.8 20 500
VAR-506 5.0 X 150 5.0 X 0.8 20 500
VAR-508 5.0 X 200 5.0 X 0.8 20 400
VAR-510 5.0 X 250 5.0 X 0.8 20 400
VAR-512 5.0 X 300 5.0 X 0.8 20 300

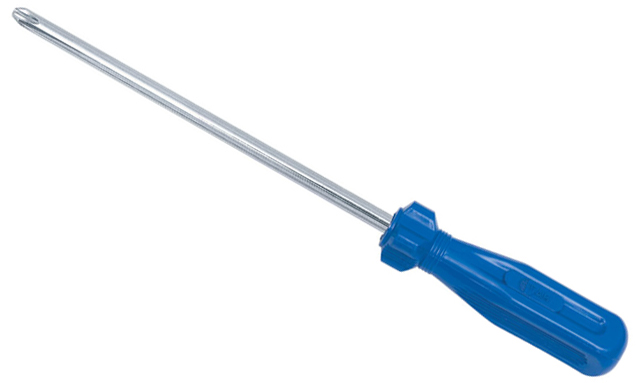

PHILLIP HEAD SCREW DRIVERS
INDUCTION HARDENED

GENERALLY CONFIRMING TO IS : 844 :1979 (PART III)

Phillip head screwdriver, named after Henry F. Phillips , a U.S. businessman  from Portland, Oregon and inventor of the Phillips-head screw and screwdriver. The importance of the self-crosshead screw design is self-centring properties, useful on automated production lines. The blade tip is designed on state-of-the-art imported machinery so as to yield quality production. Handle design has been explained earlier. It is available in many different sizes.



Click to Enlarge
View

Product No. Blade Size Dia x Length
Point No.

Pcs. in Box

Pcs. in cartoon
VAR-002 2.5 X 50 00 20 2000
VAR-03 3.0 X 60 0 20 2000
VAR-06 3.0 X 150 0 20 1500
VAR-104 4.5 X 100 1 20 500
VAR-106 4.5 X 150 1 20 500
VAR-108 5.0 X 200 1 20 400
VAR-110 5.0 X 250 1 20 400
VAR-204 6.0 X 100 2 20 500
VAR-206 6.0 X 150 2 20 500
VAR-208 6.0 X 200 2 20 400
VAR-210 6.0 X 250 2 20 400
VAR-306 8.0 X 150 3 10 200
VAR-308 8.0 X 200 3 10 200
VAR-310 8.0 X 200 3 10 200

POKER
INDUCTION HARDENED

GENERALLY CONFIRMING TO IS : 10375 : 1982
Sharp and pointed blades are made out of spring handle steel.



Click to Enlarge View

Product No. Blade Size
Dia x length

Pcs. in Box

Pcs in cartoons
VAR-604 P 6.0 X 100 20 500

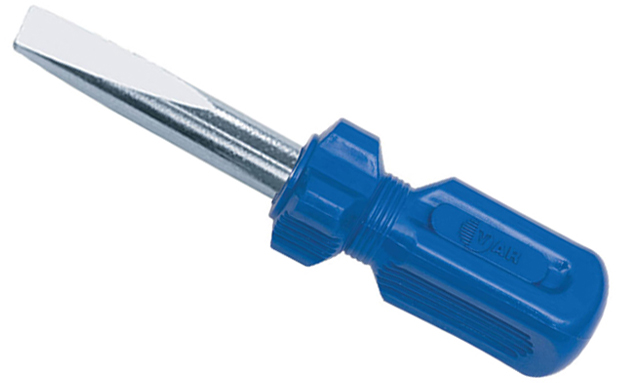

SLOTTED HEAD SCREW DRIVER - STUBBY
INDUCTION HARDENED

The small size of this screwdrivers is helpful in work situations where space limitation is the criteria. The screwdrivers are available in Flat head, Phillip head and 2-IN-1.



Click to Enlarge View

Product No. Blade Size
Dia x length
Tip Dimension

Pcs. in Box

Pcs. in Cartoons
VAR-677 6.0 X 50 6.0 X 0.9 10 500
